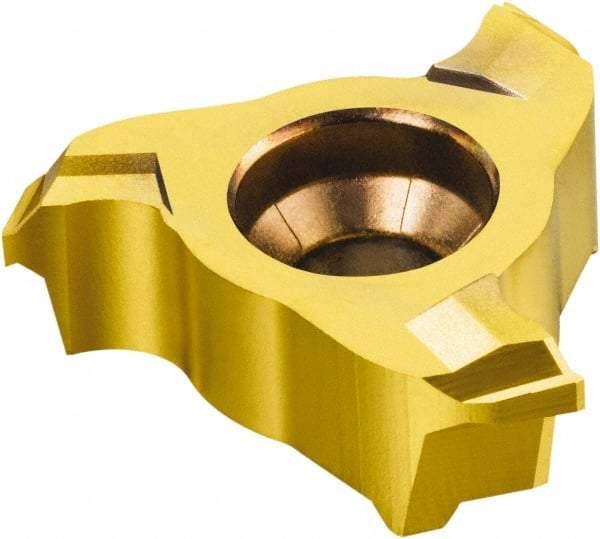

Sandvik Coromant - 327-GC Grade 1025 Carbide Milling Tip Insert - TiAlN+TiN Finish, 3 Flutes, 21.7mm Cutting Diam, 1.5mm Depth of Cut, 0.0059" Cnr Rad, 0° Helix
Item #: 60419165
Brand: Sandvik Coromant
Model #: 5758801
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multi-layered coating designed to increase tool life. It is extremely heat-resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Milling Tip Style | 327-GC |
| Material | Carbide |
| Cutting Diameter (mm) | 21.7 |
| Cutting Diameter (Decimal Inch) | 0.8543 |
| Manufacturer's Grade | 1025 |
| Depth of Cut (mm) | 1.50 |
| Number of Flutes | 3 |
| Coating | TiAlN+TiN |
| Corner Radius (Decimal Inch) | 0.005906 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.1043 |
| Helix Angle | 0 |
| Style | 327-GC |
