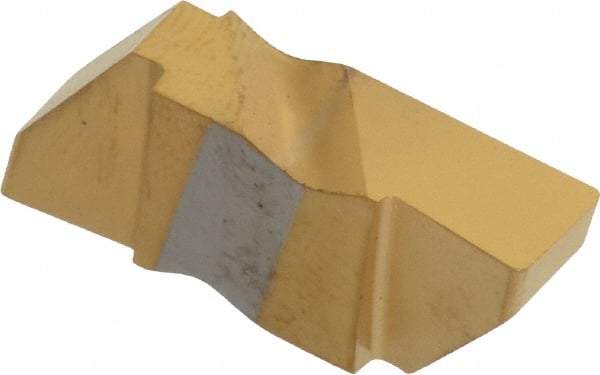

Tool-Flo - 4250FLG Grade GP50, 1/4" Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Right Hand, 0.02 to 0.025" Corner Radius, TiN Finish
Item #: 60346277
Brand: Tool-Flo
Model #: 574050RN4E
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLG |
| Insert Size | 4250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Inch) | 1/4 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | GP50 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Lead Angle | 3 |
| Relief Angle | 55 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0200 |
| Maximum Corner Radius (Decimal Inch) | 0.0250 |
| Corner Radius (Decimal Inch) | 0.020-0.025 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Overall Width (Decimal Inch) | 0.2550 |
