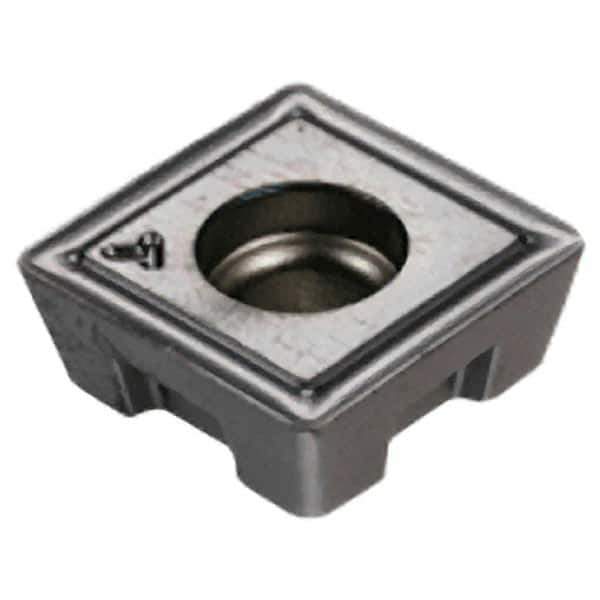

Iscar - SOMT160512 DT Grade IC9080 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 16mm Inscribed Circle
Item #: 60321130
Brand: Iscar
Model #: 5506616
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 160512 |
| Material | Carbide |
| Manufacturer's Grade | IC9080 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | DT |
