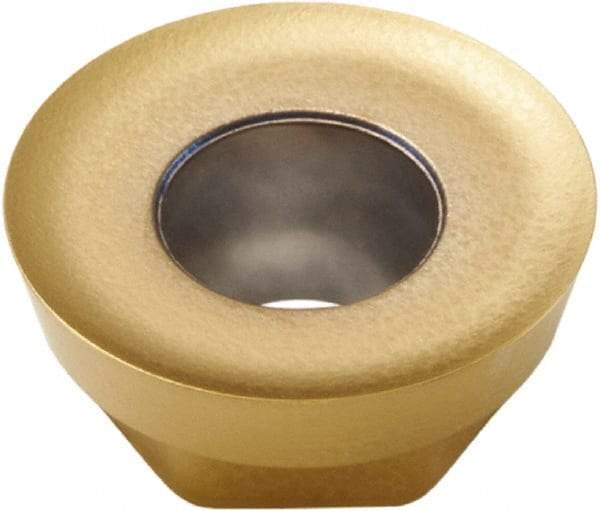

Seco - RDGT10T3M0 E04 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.156" Thick, 0.394" Inscribed Circle
Item #: 60205986
Brand: Seco
Model #: 04808
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDGT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 15.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | E04 |
| ISO Number | RDGT 10T3M0-E04 |
