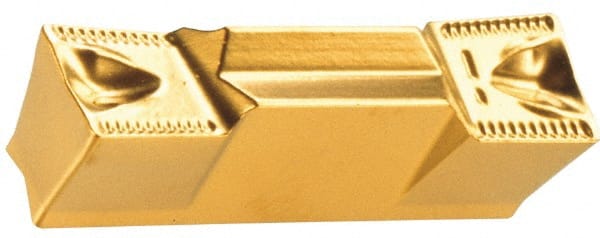

Iscar - GRIP4002Y IC08 Carbide Grooving Insert
Item #: 60204898
Brand: Iscar
Model #: 6200121
Product Specifications
| Insert Style | GRIP |
| Insert Size | 4002 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Material Grade | C2 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
