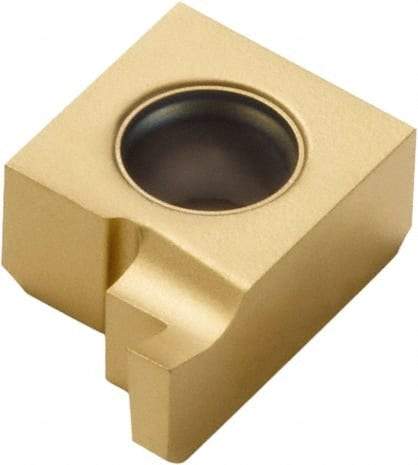

Seco - 91359NL FG Grade CP500, 1.35mm Cutting Width Carbide Grooving Insert - 1.35mm Max Depth of Cut, Left Hand, TiAlN/TiN Finish
Item #: 60176682
Brand: Seco
Model #: 26727
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 9NL |
| Insert Size | 9135 |
| Material | Carbide |
| Cutting Width (mm) | 1.35 |
| Cutting Width (Decimal Inch) | 0.0531 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Insert Seat Size | 9 |
| Chipbreaker | FG |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 9.00 |
| Overall Length (Decimal Inch) | 0.3543 |
| Series | Snap Tap |
| Overall Width (mm) | 6.35 |
| Overall Width (Decimal Inch) | 0.2500 |
