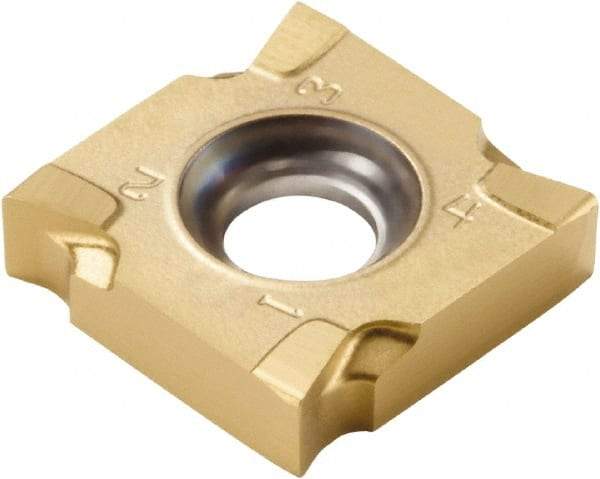

Seco - SNHQ120316 M07 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.126" Thick, 1/2" Inscribed Circle, 1.6mm Corner Radius
Item #: 60171139
Brand: Seco
Model #: 26309
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHQ |
| Insert Size | 120316 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M07 |
| Manufacturers Catalog Number | SNHQ 120316TR4-M07 |
