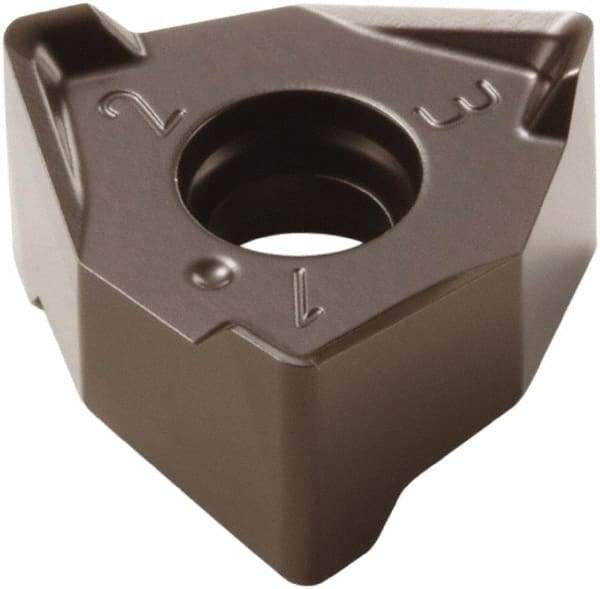

Seco - XNEX080608 M08 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 0.491" Inscribed Circle
Item #: 60170651
Brand: Seco
Model #: 69461
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080608 |
| Material | Carbide |
| Material Grade | Medium |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Inch) | 1/4 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Trigon |
| Chipbreaker | M08 |
| ISO Number | XNEX080608R-M08 |
