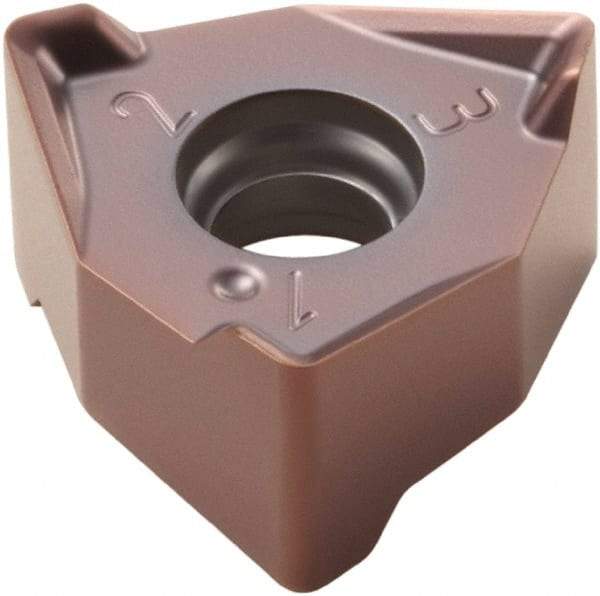

Seco - XNEX080612 MD15 Grade MK1500 Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 0.491" Inscribed Circle, 0.047" Corner Radius
Item #: 60170636
Brand: Seco
Model #: 62230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080612 |
| Material | Carbide |
| Manufacturer's Grade | MK1500 |
| Coating | TiCN/Al2O3 |
| Length (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 0.000 |
| Rake Angle | 17 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Trigon |
| Chipbreaker | MD15 |
| ISO Number | XNEX 080612TR-MD15 |
