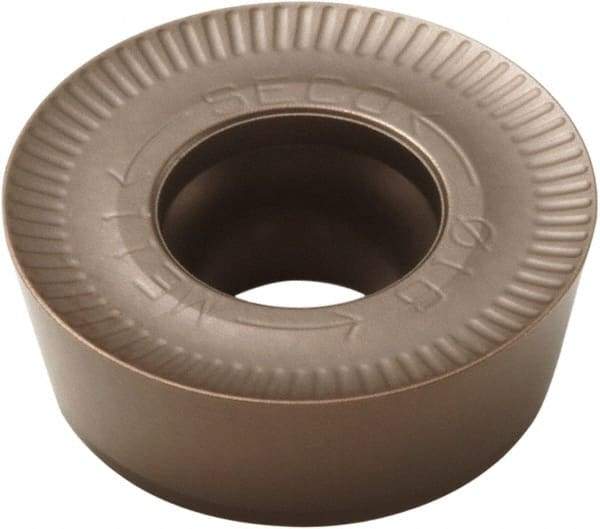

Seco - RPHT2006M0 ME12 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 20mm Inscribed Circle
Item #: 60169331
Brand: Seco
Model #: 67668
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPHT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Decimal Inch) | 0.2500 |
| Relief Angle | 11.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | ME12 |
| ISO Number | RPHT 2006M0T-ME12 |
