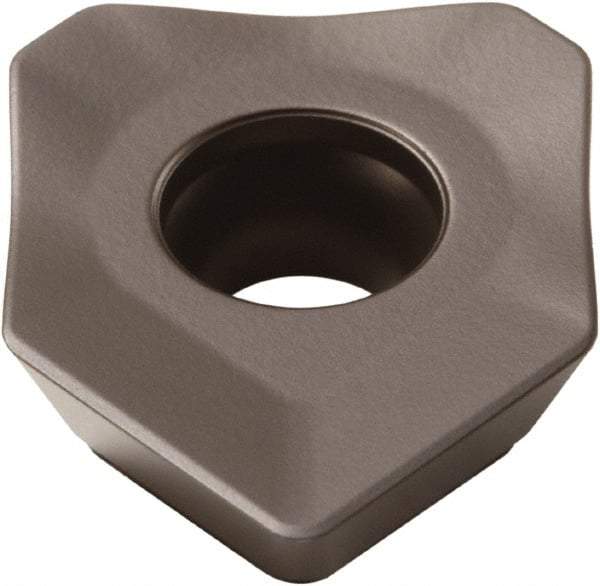

Seco - SEEX1505 M17 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.219" Thick, 5/8" Inscribed Circle
Item #: 60169174
Brand: Seco
Model #: 21264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2190 |
| Relief Angle | 20.000 |
| Rake Angle | 5 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M17 |
| ISO Number | SEEX1505ZZTN-M17 |
