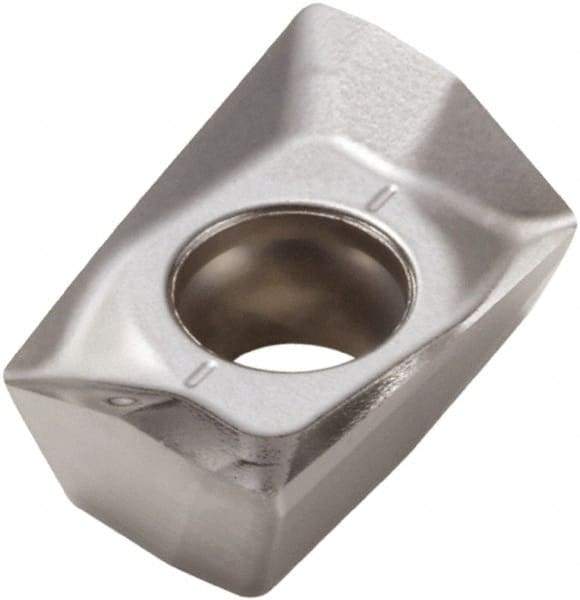

Seco - XOEX090304 E05 Grade H15 Carbide Milling Insert - Uncoated, 0.144" Thick, 0.016" Corner Radius
Item #: 60116555
Brand: Seco
Model #: 00032
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 090304 |
| Material | Carbide |
| Manufacturer's Grade | H15 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.4250 |
| Thickness (Decimal Inch) | 0.1440 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 15.000 |
| Rake Angle | 31 |
| Rake | Positive |
| Included Angle | 80 |
| Shape | Parallelogram |
| Chipbreaker | E05 |
| ISO Number | XOEX 090304FR-E05 |
