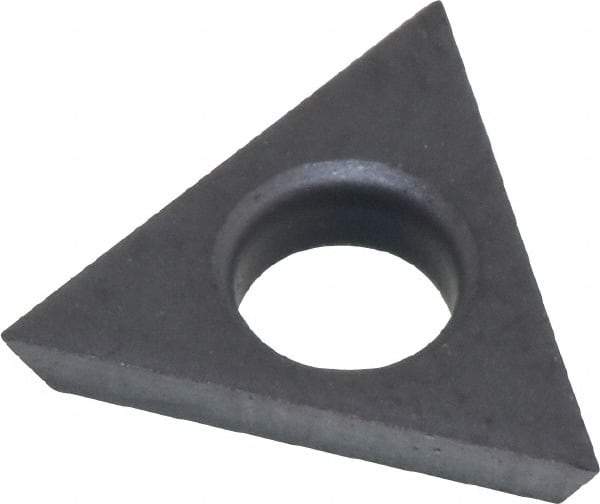

Kennametal - TDHB12807501 Grade KC5010 Carbide Boring Insert - TiN Finish, 60° Triangle, 15° Relief Angle, 5/32" Inscr Circle, 3/64" Thick, 0.002" Corner Radius
Item #: 59873315
Brand: Kennametal
Model #: 1937532
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TDHB |
| Insert Size | 12807501 |
| Material Grade | Micrograin |
| Manufacturer's Grade | KC5010 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Thickness (Decimal Inch) | 0.0470 |
| Thickness (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating | TiN |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Relief Angle | 15 |
| Included Angle | 60 |
| Coating Process | PVD |
| Shape | Triangle |
