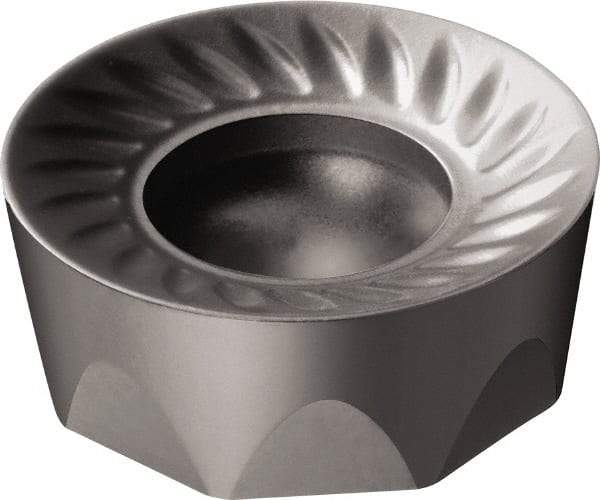

Sandvik Coromant - RCKT1606M0 PM Grade S30T Carbide Milling Insert - TiAlN2 Finish, 1/4" Thick, 16mm Inscribed Circle, 8mm Corner Radius
Item #: 59221754
Brand: Sandvik Coromant
Model #: 5853548
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKT |
| Insert Size | 1606M0 |
| Material | Carbide |
| Manufacturer's Grade | S30T |
| Coating | TiAlN2 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Coating Process | PVD |
| Included Angle | 0 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 2.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.0921 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RCKT 16 06 M0-PM S30T |
