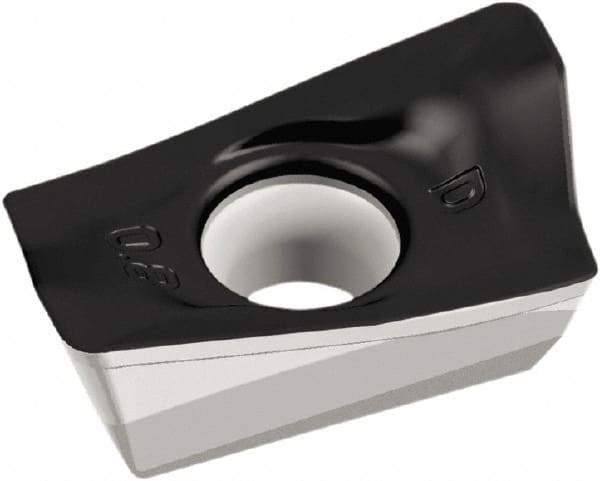

Walter - ADGT1807 D56 Grade WSP45S Carbide Milling Insert - TiAlN/Al2O3 Finish, 0.276" Thick, 14.5mm Inscribed Circle, 1.19mm Corner Radius
Item #: 59183822
Brand: Walter
Model #: 6428197
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADGT |
| Insert Size | 1807 |
| Material | Carbide |
| Manufacturer's Grade | WSP45S |
| Coating | TiAlN/Al2O3 |
| Width (Decimal Inch) | 0.5709 |
| Length (Decimal Inch) | 0.7480 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (Decimal Inch) | 0.2760 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D56 |
