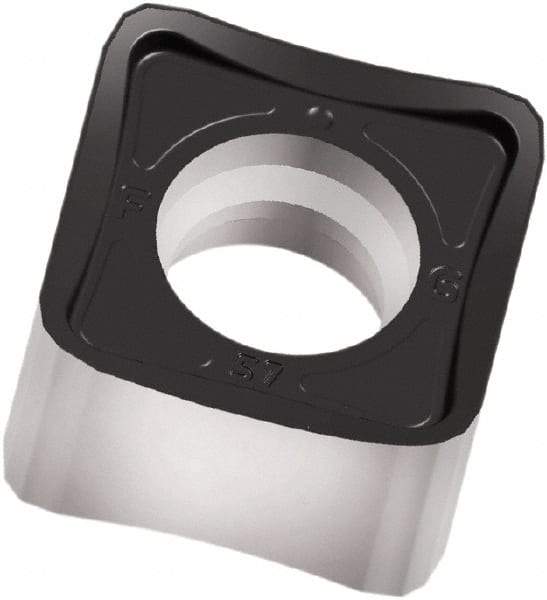

Walter - SNGX1205 F67 Grade WSM35S Carbide Milling Insert - TiAlN/Al2O3 Finish, 0.252" Thick, 1/2" Inscribed Circle, 0.3mm Corner Radius
Item #: 59183590
Brand: Walter
Model #: 6161603
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNGX |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | WSM35S |
| Coating | TiAlN/Al2O3 |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2520 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | F67 |
