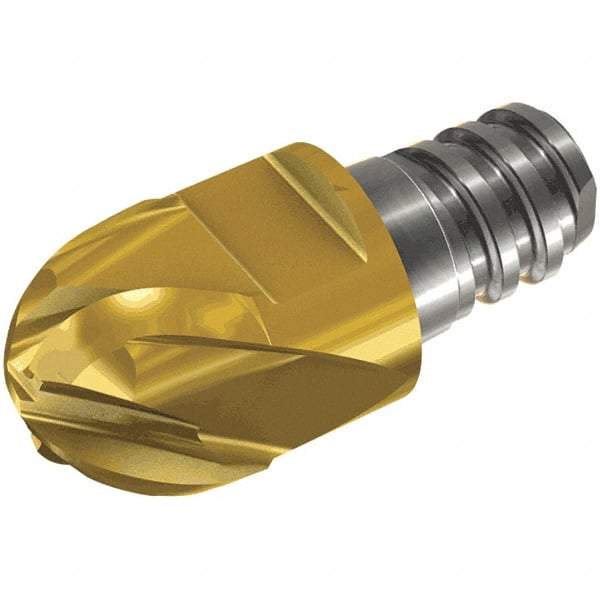

Iscar - MM EB Grade IC908 Carbide Ball Nose Milling Tip Insert - TiAlN/TiN Finish, 4 Flutes, 5/16" Cutting Diam, 0.2" Depth of Cut, 0.35" Extension, 5/32" Cnr Rad
Item #: 59057968
Brand: Iscar
Model #: 5621377
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EB |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3120 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Flutes | 4 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.1560 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.3500 |
| Thread Size | T05 |
