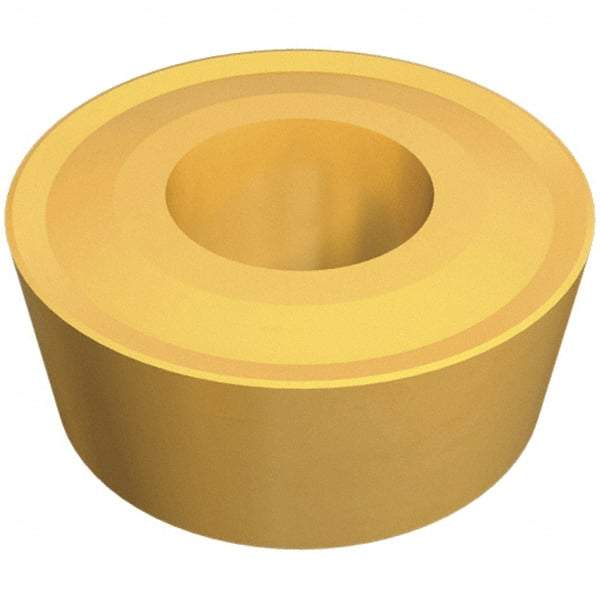

Iscar - RCMT10T3M, IC9250 Grade Carbide Profiling Insert - TiCn/Al2O3/TiN Finish, 7° Relief Angle, Round, 3.96mm Thick, 10.01mm Inscribed Circle
Item #: 59057836
Brand: Iscar
Model #: 5507580
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCMT |
| Insert Size | 10T3M |
| Manufacturer's Grade | IC9250 |
| Inscribed Circle (mm) | 10.01 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 7 |
| Coating | TiCn/Al2O3/TiN |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Coating Process | CVD |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Shape | Round |
