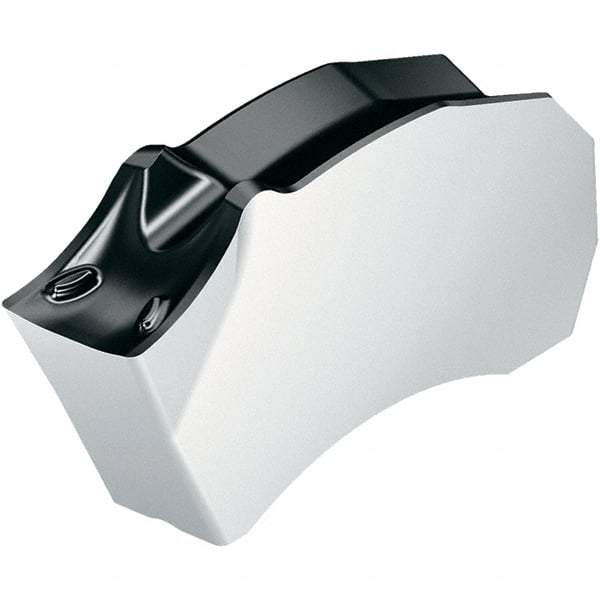

Walter - SX2E200N02 CF6 WSM33S Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0079" Cnr Rad, TiAlN/Al2O3/Al Coated, Single End
Item #: 58801705
Brand: Walter
Model #: 6422255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SX |
| Insert Size | 2E200N02 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | S30/M30/P35 |
| Manufacturer's Grade | WSM33S |
| Coating | TiAlN/Al2O3/Al |
| Series | Tiger-tec Silver |
| Chipbreaker | CF6 |
| Full Radius | No |
| Multi-Use Application | Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | SX-2E200N02-CF6 |
