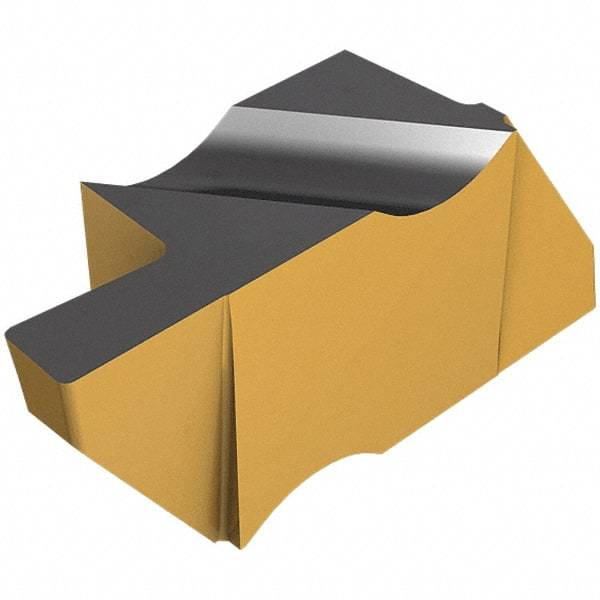

Iscar - 079009LING Grade IC808, 0.79mm Cutting Width Carbide Grooving Insert - 1.27mm Max Depth of Cut, 0.09mm Corner Radius, TiN/TiAlN Finish
Item #: 58791328
Brand: Iscar
Model #: 6405499
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ING |
| Insert Size | 079009L |
| Material | Carbide |
| Cutting Width (mm) | 0.79 |
| Cutting Width (Decimal Inch) | 0.0311 |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Cutting Direction | Left Hand |
| Cutting Height (mm) | 8.65 |
| Cutting Height (Decimal Inch) | 0.3406 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.09 |
| Corner Radius (Decimal Inch) | 0.0035 |
| Coating Process | PVD |
| Overall Length (mm) | 22.86 |
| Overall Length (Decimal Inch) | 0.9000 |
| Series | Notch-Grip |
| Manufacturers Catalog Number | ING 0.79-0.09L |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1949 |
