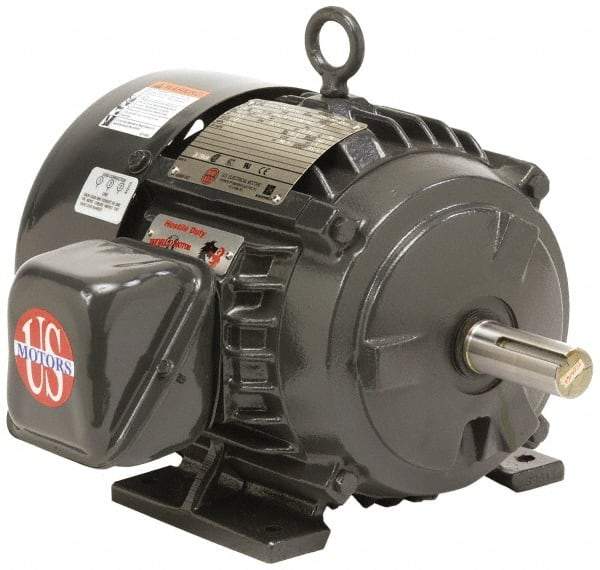

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 208-230/460 Volt, 60/50 Hz, Three Phase Energy Efficient Motor - Size 213T Frame, Rigid Mount, 1 Speed, Ball Bearings, 9.6-9.1/4.6 Full Load Amps, F Class Insulation, Reversible
Item #: 58755596
Brand: US Motors
Model #: H3E3D
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Motor Type | Three Phase Energy Efficient |
Type of Enclosure | TEFC |
Horsepower | 3 |
Thermal Protection Rating | None |
Name Plate RPMs | 1175 |
Voltage | 208-230/460 |
Frequency Hz | 60/50 |
Frame Size | 213T |
Mount Type | Rigid |
Number of Speeds | 1 |
Bearing Type | Ball |
Applications | General Purpose |
Full Load Amperage | 9.6-9.1/4.6 |
Insulation Class | F |
Frame Material | Cast Iron |
Overall Length (Decimal Inch) | 17.5600 |
Shaft Diameter x Length (Inch) | 1-3/8 x 3-3/8 |
Full Load Efficiency Rating | 87.50 |
Service Factor Rating | 1.15 |
Motor Rotation | Reversible |
PSC Code | 6105 |
