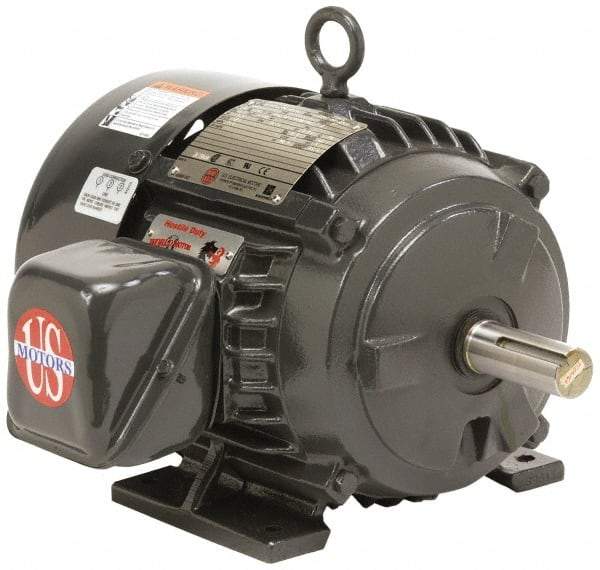

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 3,490 RPM, 208-230/460 Volt, 60/50 Hz, Three Phase Energy Efficient Motor - Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 5.6-5/2.5 Full Load Amps, F Class Insulation, Reversible
Item #: 58755554
Brand: US Motors
Model #: H2E1D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3490 |
| Voltage | 208-230/460 |
| Frequency Hz | 60/50 |
| Frame Size | 145T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 5.6-5/2.5 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 12.8800 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Full Load Efficiency Rating | 84.00 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
