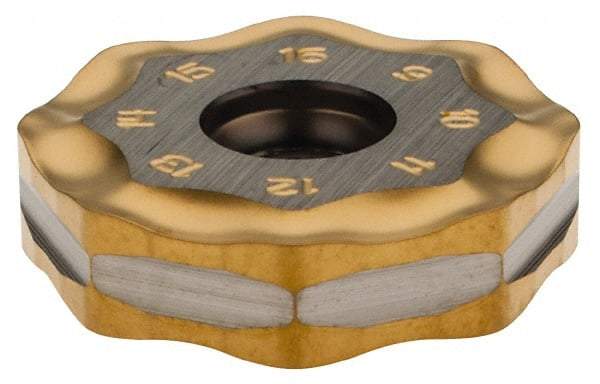

Seco - ONMU090520 M15 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 58731209
Brand: Seco
Model #: 52515
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.8660 |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Chipbreaker | M15 |
| ISO Number | ONMU090520ANTN-M15 |
