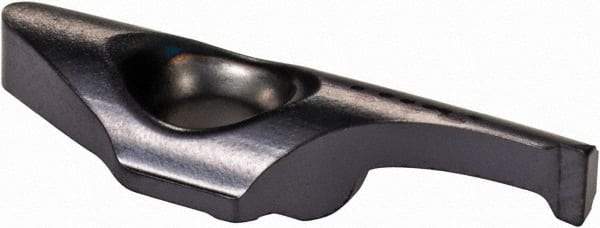

Iscar - 8220020MIFR Grade IC908, 2.21mm Cutting Width Carbide Grooving Insert - 5.69mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiN/TiAlN Finish
Item #: 58617556
Brand: Iscar
Model #: 6404045
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MIFR |
| Insert Size | 8220020 |
| Material | Carbide |
| Cutting Width (mm) | 2.21 |
| Cutting Width (Decimal Inch) | 0.0870 |
| Maximum Depth of Cut (mm) | 5.69 |
| Maximum Depth of Cut (Decimal Inch) | 0.2240 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Recessing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 17.78 |
| Overall Length (Decimal Inch) | 0.7000 |
| Series | MinCut |
| ISO Number | MIFR 8-2.20-0.20 |
| Manufacturers Catalog Number | MIFR 8-2.20-0.20 |
