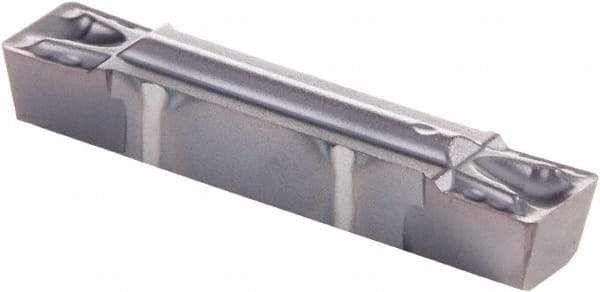

Kennametal - 0400G GUP Grade KCU10, 4mm Cutting Width Carbide Grooving Insert - 3.35mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, AlTiN Finish
Item #: 58501198
Brand: Kennametal
Model #: 3871072
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0400 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 3.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.1320 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.14 |
| Cutting Height (Decimal Inch) | 0.1236 |
| Insert Seat Size | 4 |
| Chipbreaker | GUP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
| Rake | Positive |
| Included Angle | 90 |
