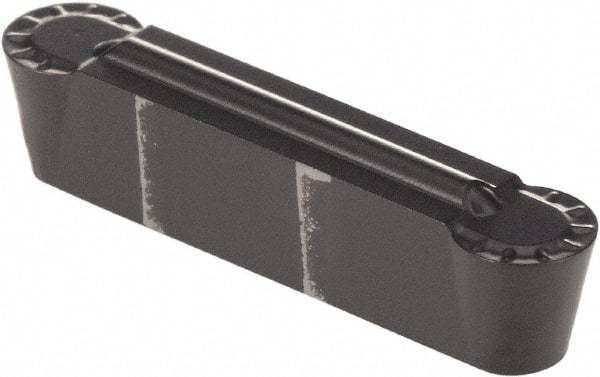

Kennametal - 0505R GMN Grade KCU10, 5.05mm Cutting Width Carbide Grooving Insert - 4.09mm Max Depth of Cut, Neutral, 2.52mm Corner Radius, AlTiN Finish
Item #: 58499989
Brand: Kennametal
Model #: 4034820
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 0505 |
| Material | Carbide |
| Cutting Width (mm) | 5.05 |
| Cutting Width (Decimal Inch) | 0.1988 |
| Maximum Depth of Cut (mm) | 4.09 |
| Maximum Depth of Cut (Decimal Inch) | 0.1614 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.72 |
| Cutting Height (Decimal Inch) | 0.2250 |
| Insert Seat Size | 5 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 2.52 |
| Corner Radius (Decimal Inch) | 0.0994 |
| Coating Process | PVD |
| Overall Length (mm) | 25.15 |
| Overall Length (Decimal Inch) | 0.9900 |
| Series | A4 |
| Manufacturers Catalog Number | A4R0505M05U00GMN |
