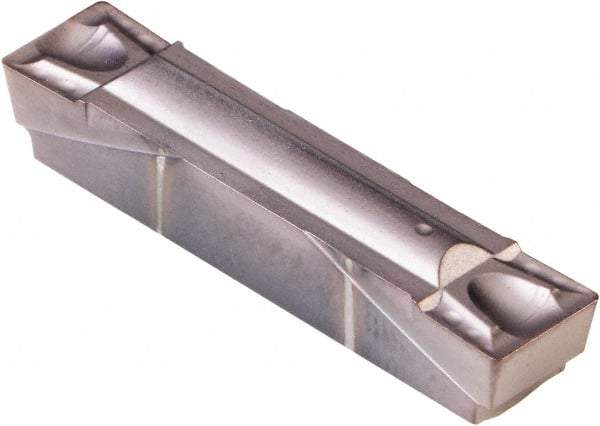

Kennametal - 250G GUP Grade KCU25, 6.35mm Cutting Width Carbide Grooving Insert - 4.45mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, AlTiN Finish
Item #: 58499344
Brand: Kennametal
Model #: 5109135
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 4.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.1750 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.69 |
| Cutting Height (Decimal Inch) | 0.2240 |
| Insert Seat Size | 6 |
| Chipbreaker | GUP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | A4 |
| Rake | Positive |
| Included Angle | 90 |
