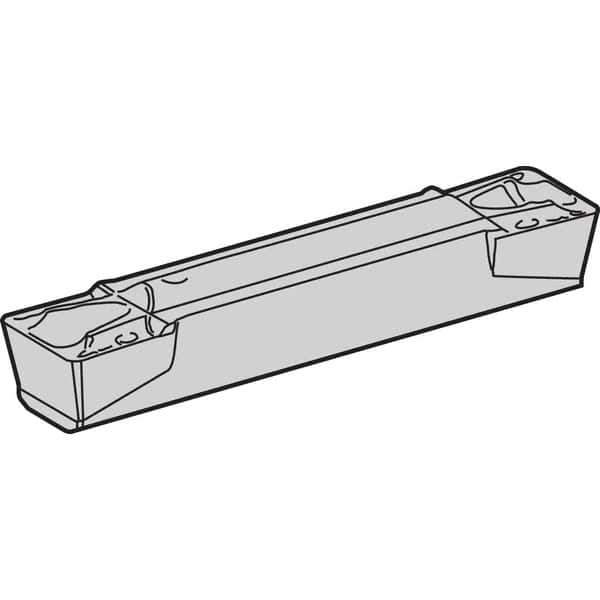

Kennametal - 0605G GMP Grade KCU25, 6.05mm Cutting Width Carbide Grooving Insert - 4.9mm Max Depth of Cut, Neutral, 3.03mm Corner Radius, AlTiN Finish
Item #: 58499294
Brand: Kennametal
Model #: 5136407
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0605 |
| Material | Carbide |
| Cutting Width (mm) | 6.05 |
| Cutting Width (Decimal Inch) | 0.2382 |
| Maximum Depth of Cut (mm) | 4.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1929 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.72 |
| Cutting Height (Decimal Inch) | 0.2250 |
| Insert Seat Size | 6 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 3.03 |
| Corner Radius (Decimal Inch) | 0.1191 |
| Coating Process | PVD |
| Overall Length (mm) | 30.10 |
| Overall Length (Decimal Inch) | 1.1850 |
| Series | A4 |
