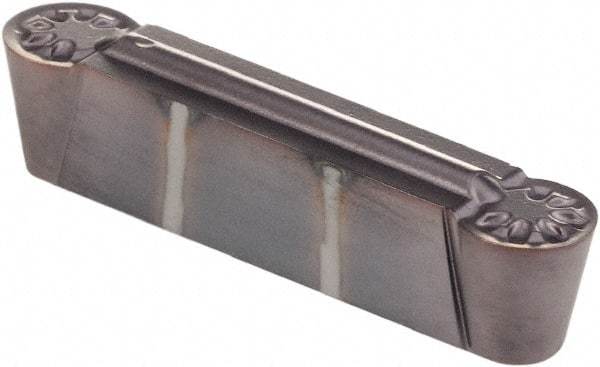

Kennametal - 0500R GUP Grade KCU25, 5mm Cutting Width Carbide Grooving Insert - Neutral, 2.49mm Corner Radius, AlTiN Finish
Item #: 58499252
Brand: Kennametal
Model #: 5147213
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 0500 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.89 |
| Cutting Height (Decimal Inch) | 0.2320 |
| Insert Seat Size | 5 |
| Chipbreaker | GUP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 2.49 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Series | A4 |
