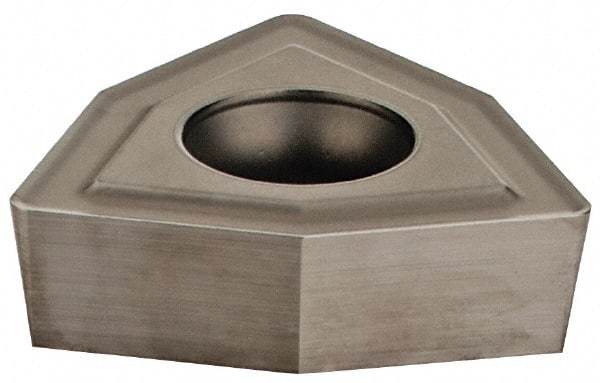

Kennametal - DFT090508 HP Grade KMF Carbide Indexable Drill Insert - Uncoated, Trigon, 15mm Inscribed Circle
Item #: 58498957
Brand: Kennametal
Model #: 1804791
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | DFT |
| Insert Size | 090508 |
| Material | Carbide |
| Manufacturer's Grade | KMF |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.25 |
| Thickness (Decimal Inch) | 0.2067 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Shape | Trigon |
| Length (mm) | 9.92 |
| Length (Decimal Inch) | 0.3906 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Chipbreaker | HP |
