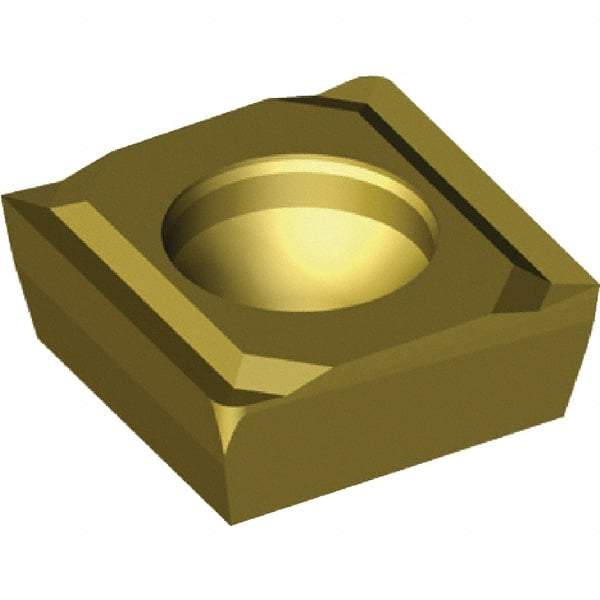

Kennametal - SPHX150520 R20 Grade KC7215 Carbide Indexable Drill Insert - TiAlN Finish, Square, 5/8" Inscribed Circle
Item #: 58498783
Brand: Kennametal
Model #: 2245845
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 150520 |
| Material | Carbide |
| Manufacturer's Grade | KC7215 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 5.95 |
| Thickness (Decimal Inch) | 0.2343 |
| Corner Radius (mm) | 1.98 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Shape | Square |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | R20 |
