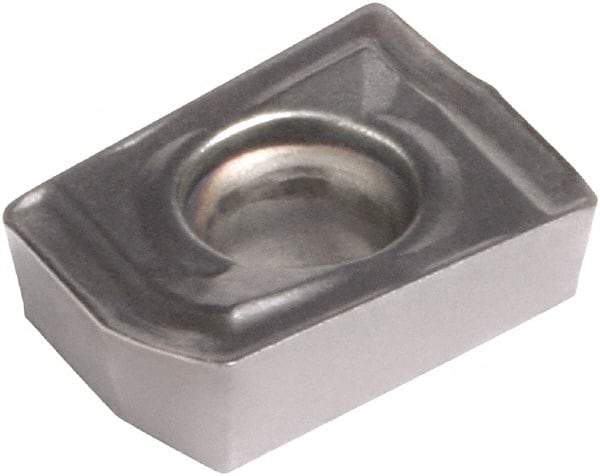

Kennametal - DFR030204 MD Grade KCU25 Carbide Indexable Drill Insert - AlTiN Finish, 6mm Inscribed Circle
Item #: 58498460
Brand: Kennametal
Model #: 5067313
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Insert Style | DFR |
| Insert Size | 030204 |
| Material | Carbide |
| Manufacturer's Grade | KCU25 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (mm) | 2.88 |
| Thickness (Decimal Inch) | 0.1134 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Width (Decimal Inch) | 0.2362 |
| Width (mm) | 6.00 |
| Length (mm) | 8.71 |
| Length (Decimal Inch) | 0.3429 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Coating | AlTiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | MD |
