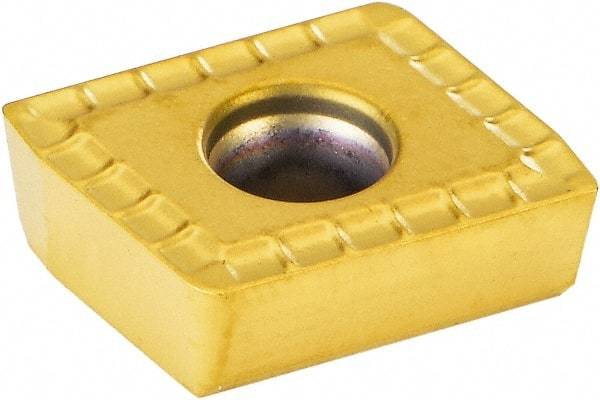

Kennametal - DFC05T312 MD Grade KC7140 Carbide Indexable Drill Insert - TiCN/TiN Finish
Item #: 58498130
Brand: Kennametal
Model #: 5118458
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | DFC |
| Insert Size | 05T312 |
| Material | Carbide |
| Manufacturer's Grade | KC7140 |
| Thickness (mm) | 3.75 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Width (Decimal Inch) | 0.3700 |
| Width (mm) | 9.40 |
| Length (mm) | 12.00 |
| Length (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 8 |
| Included Angle | 90 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | MD |
