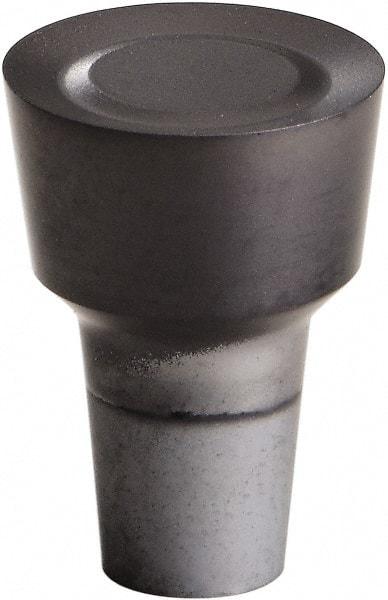

Kennametal - RCGK35, KCU10 Grade Carbide Profiling Insert - AlTiN Finish, 50° Incl Angle, Round, 13.23mm Thick, 3/8" Inscribed Circle
Item #: 58497405
Brand: Kennametal
Model #: 4050657
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCGK |
| Insert Size | 35 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 13.23 |
| Thickness (Decimal Inch) | 0.5210 |
| Insert Height (mm) | 13.23 |
| Insert Height (Decimal Inch) | 0.5210 |
| Relief Angle | 7 |
| Coating | AlTiN |
| Coating Process | PVD |
| Chipbreaker | HP |
| Included Angle | 50 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | K-Lock |
| Insert Holding Method | Clamp |
| Shape | Round |
