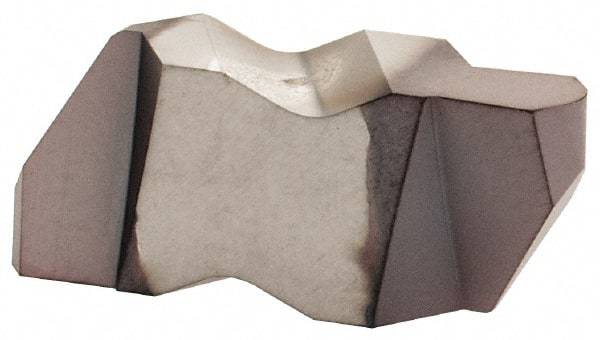

Kennametal - 3125NU Grade KCU25, 3.18mm Cutting Width Carbide Grooving Insert - 4.78mm Max Depth of Cut, Right Hand, 1.19mm Corner Radius, AlTiN Finish
Item #: 58496472
Brand: Kennametal
Model #: 4033886
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NU |
| Insert Size | 3125 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 4.78 |
| Maximum Depth of Cut (Decimal Inch) | 0.1880 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 45 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Undercutting |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1950 |
| Included Angle | 90 |
