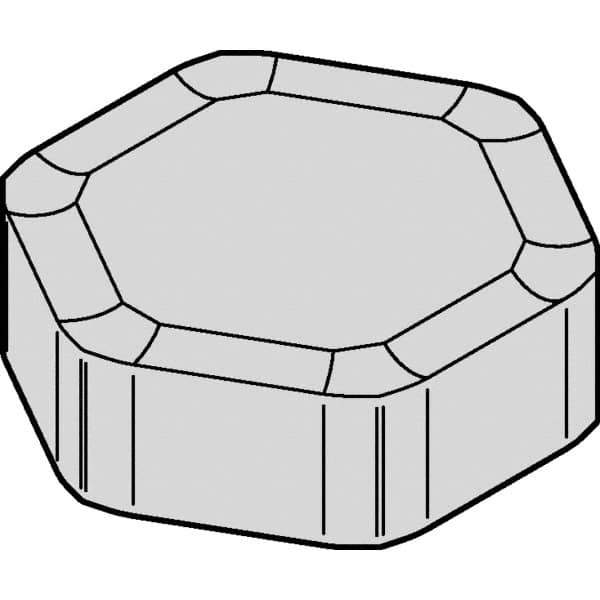

Kennametal - HNGF5351 Grade KC514M Carbide Milling Insert - TiAlN Finish, 7/32" Thick, 5/8" Inscribed Circle, 0.4mm Corner Radius
Item #: 58491788
Brand: Kennametal
Model #: 2957706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGF |
| Insert Size | 5351 |
| Material | Carbide |
| Manufacturer's Grade | KC514M |
| Coating | TiAlN |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| ISO Number | HNGF090504MF |
