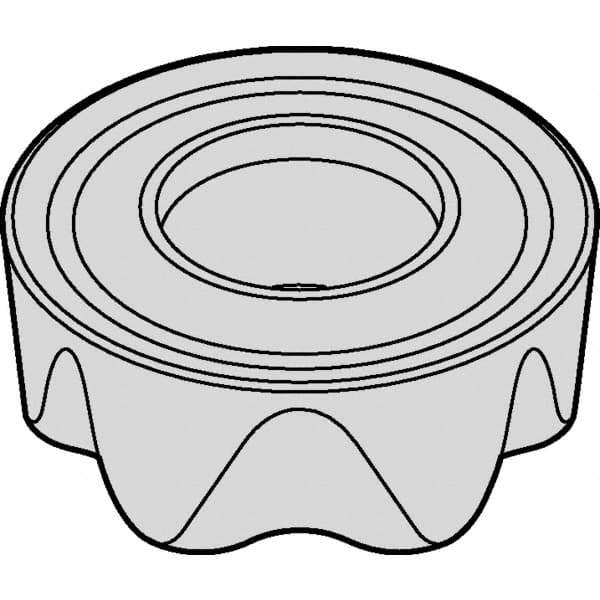

Kennametal - RCGT86 Grade KC522M Carbide Milling Insert - AlTiN Finish, 3/8" Thick, 1" Inscribed Circle
Item #: 58491663
Brand: Kennametal
Model #: 3326217
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGT |
| Insert Size | 86 |
| Material | Carbide |
| Manufacturer's Grade | KC522M |
| Coating | AlTiN |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2560 |
| Relief Angle | 7.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed T-Land |
| ISO Number | RCGT250900SGF |
