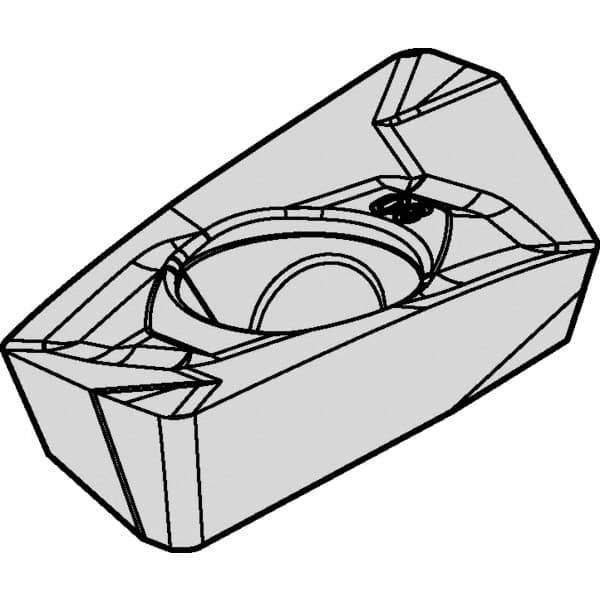

Kennametal - EC1812 Grade KC422M Carbide Milling Insert - TiB2 Finish, 0.2165" Thick, 3/64" Corner Radius
Item #: 58491135
Brand: Kennametal
Model #: 3959613
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1812 |
| Material | Carbide |
| Manufacturer's Grade | KC422M |
| Coating | TiB2 |
| Width (Decimal Inch) | 0.4319 |
| Length (Decimal Inch) | 0.8570 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.19 |
| Relief Angle | 15.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
| ISO Number | EDCT180512PDERLDJ |
