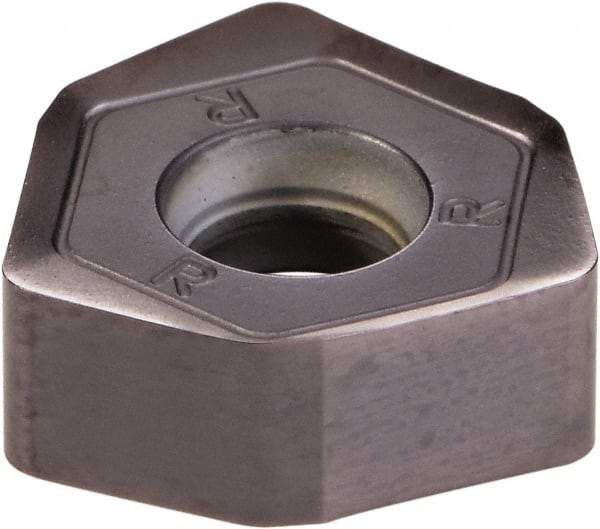

Kennametal - XNGJ43 LD Grade KC522M Carbide Milling Insert - AlTiN Finish, 0.1777" Thick, 12mm Inscribed Circle, 1.6mm Corner Radius
Item #: 58490574
Brand: Kennametal
Model #: 4121607
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNGJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KC522M |
| Coating | AlTiN |
| Length (Decimal Inch) | 0.5134 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1777 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | LD |
| ISO Number | XNGJ0604ANENLD3W |
