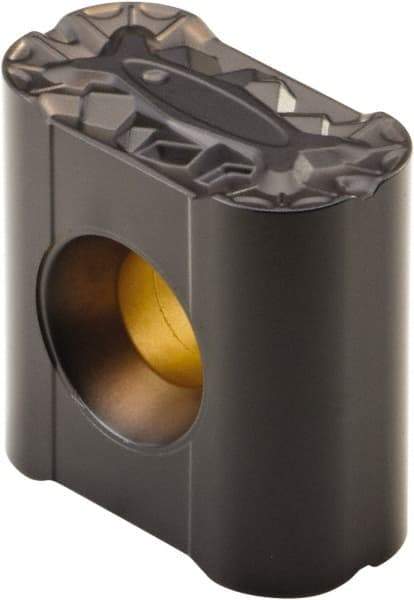

Kennametal - LNUX191940, KCP25 Grade Carbide Profiling Insert - TiCN/Al2O3 Finish, 90° Incl Angle, Rectangle, 0.748" Side Length, 3/4" Thick, 5/32" Corner Radius
Item #: 58489717
Brand: Kennametal
Model #: 4005706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LNUX |
| Insert Size | 191940 |
| Manufacturer's Grade | KCP25 |
| Width (mm) | 10.00 |
| Width (Decimal Inch) | 0.3937 |
| Thickness (mm) | 19.05 |
| Thickness (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 3/4 |
| Corner Radius (mm) | 3.97 |
| Corner Radius (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.1563 |
| Relief Angle | 0 |
| Coating | TiCN/Al2O3 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Coating Process | CVD |
| Side Length (Decimal Inch) | 0.7480 |
| Side Length (mm) | 19.00 |
| Chipbreaker | RRP |
| Included Angle | 90 |
| Shape | Rectangle |
