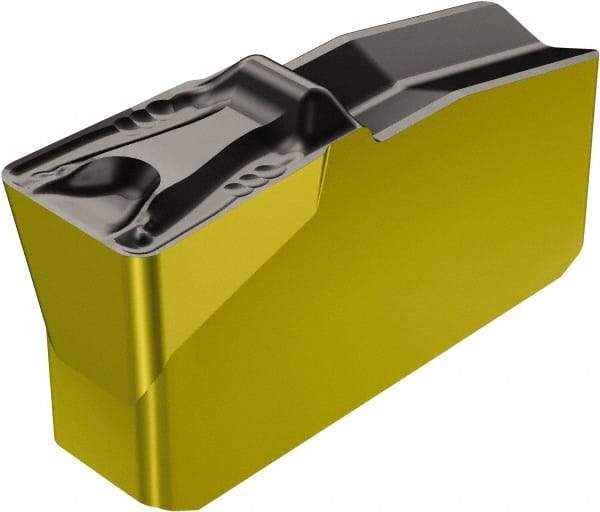

Sandvik Coromant - 40N151.2 5T Grade 4225, 4mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 58403510
Brand: Sandvik Coromant
Model #: 5738364
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 40 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Manufacturer's Grade | 4225 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Insert Seat Size | 40 |
| Chipbreaker | 5T |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | MT-CVD |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.2-4008-40-5T 4225 |
| Manufacturers Catalog Number | N151.2-4008-40-5T 4225 |
| Overall Width (mm) | 8.11 |
| Overall Width (Decimal Inch) | 0.3191 |
| Insert Thickness (Decimal Inch) | 0.3191 |
