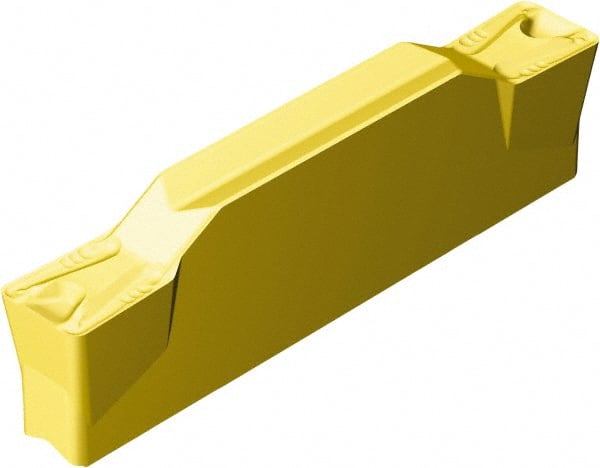

Sandvik Coromant - N123J205000004-TM 2135 Carbide Grooving Insert
Item #: 58133158
Brand: Sandvik Coromant
Model #: 5736297
Product Specifications
| Insert Style | N123x2 |
| Insert Size | J2 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 23.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.9210 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | J |
| Chipbreaker | TM |
| Multi-Use Application | Turning; Grooving |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | MT-CVD |
| Series | CoroCut? 1-2 |
| Rake | Positive |
| ISO Number | N123J2-0500-0004-TM 2135 |
| Manufacturers Catalog Number | N123J2-0500-0004-TM 2135 |
| Overall Width (mm) | 4.35 |
| Overall Width (Decimal Inch) | 0.1713 |
| Insert Thickness (Decimal Inch) | 0.1713 |
