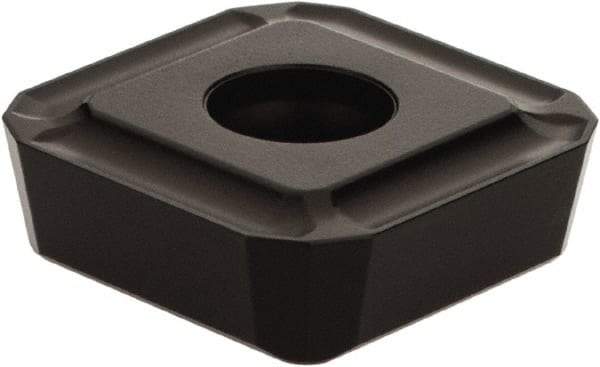

Seco - SPGX1504 C1 Grade DP3000 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Square, 5/8" Inscribed Circle
Item #: 57754442
Brand: Seco
Model #: 09930
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 1504 |
| Material | Carbide |
| Manufacturer's Grade | DP3000 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 0 |
| Shape | Square |
| Width (Decimal Inch) | 0.6250 |
| Length (Decimal Inch) | 0.6250 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiCN/Al2O3 |
| Coating Process | Duratomic |
| Cutting Direction | Right Hand |
| Chipbreaker | C1 |
