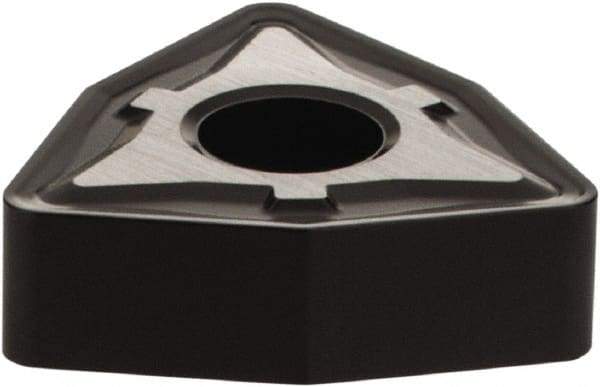

Seco - WNMG433 M5 Grade TK1001 Carbide Turning Insert - Trigon, 1/2" Inscr Circle, 0.188" Thick, 3/64" Corner Radius
Item #: 57733560
Brand: Seco
Model #: 69880
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | TK1001 |
| Chip Breaker | M5 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | WNMG 433-M5 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
