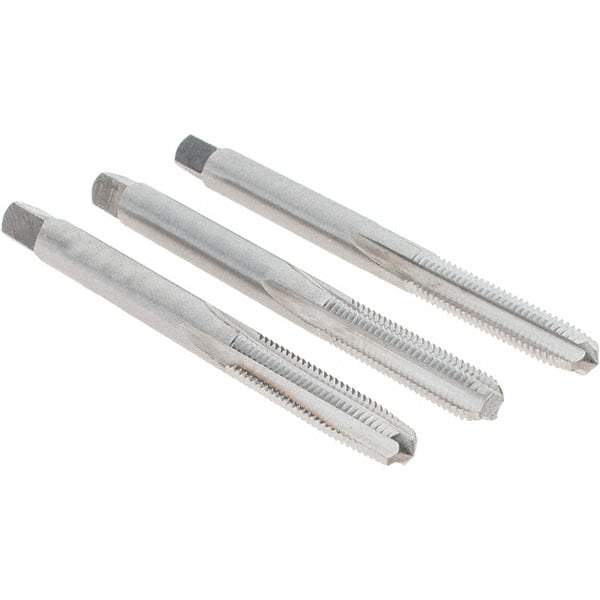

Cle-Line - #10-32 UNF, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 2-3/8" OAL, 7/8" Thread Length, Series 0404
Item #: 57651838
Brand: Cle-Line
Model #: C62024
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size | #10-32 |
| Number of Flutes | 4 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.8750 |
| Thread Length (Inch) | 7/8 |
| Overall Length (Decimal Inch) | 2.3750 |
| Overall Length (Inch) | 2-3/8 |
| Overall Length (mm) | 60.33 |
| Thread Standard | UNF |
| Series/List | 0404 |
| Number of Pieces | 3 |
