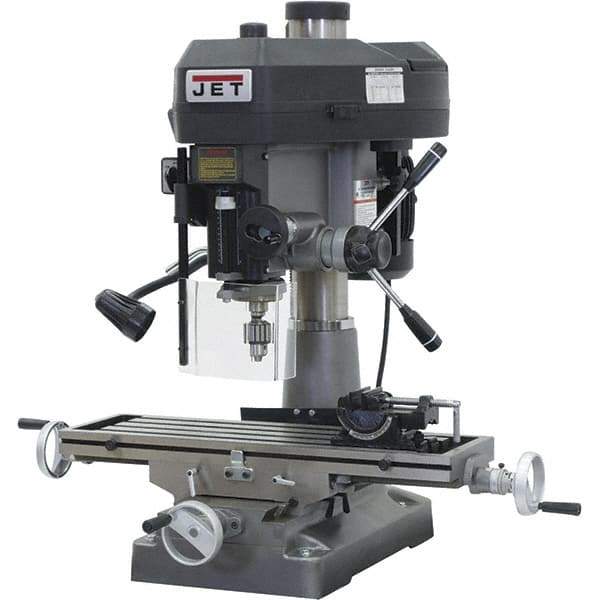

Jet - 1 Phase, 15-7/8" Swing, Step Pulley Mill Drill Combination - 9-1/2" Table Length x 32-1/4" Table Width, 20-1/2" Longitudinal Travel, 7" Cross Travel, 12 Spindle Speeds, 2 hp, 115/230 Volts
Item #: 57462830
Brand: Jet
Model #: 350126
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Swing Distance (Inch) | 15-7/8 |
| Phase | 1 |
| Table Length (Inch) | 9-1/2 |
| Table Width (Inch) | 32-1/4 |
| Longitudinal Travel (Inch) | 20-1/2 |
| Cross Travel (Inch) | 7 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 110.00 |
| Maximum Spindle Speed (RPM) | 2580.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Machine Type | Mill Drill Combination |
| Spindle Diameter (Inch) | 1.8120 |
| Spindle Taper Size | R8 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/4 |
| Quill Diameter (Inch) | 3 |
| Horsepower (HP) | 2 |
| Voltage | 115/230 |
