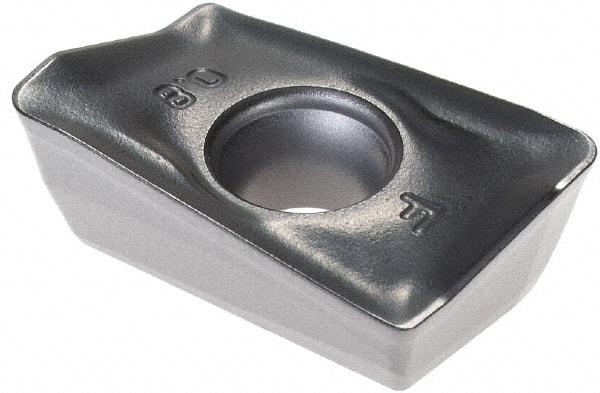

Walter - ADMT10T308 F56 Grade WKP35S Carbide Milling Insert - 0.1496" Thick, 0.8mm Corner Radius
Item #: 57184913
Brand: Walter
Model #: 5881326
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADMT |
| Insert Size | 10T308 |
| Material | Carbide |
| Manufacturer's Grade | WKP35S |
| Width (Decimal Inch) | 0.2854 |
| Length (Decimal Inch) | 0.4449 |
| Thickness (Decimal Inch) | 0.1496 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | F56 |
| Manufacturers Catalog Number | ADMT10T308R-F56 |
