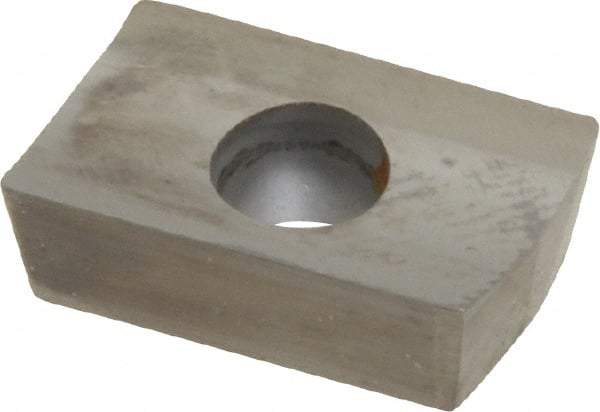

Seco - XCEX13T304 E06 Grade HX Carbide Milling Insert - Uncoated, 0.168" Thick, 0.016" Corner Radius
Item #: 57027625
Brand: Seco
Model #: 95065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCEX |
| Insert Size | 13T304 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | HX |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3160 |
| Length (Decimal Inch) | 0.5310 |
| Thickness (Decimal Inch) | 0.1680 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 7.000 |
| Rake Angle | 18 |
| Included Angle | 80 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | E06 |
| Cutting Edge Style | Sharp |
| ISO Number | XCEX13T304FR-E06 |
