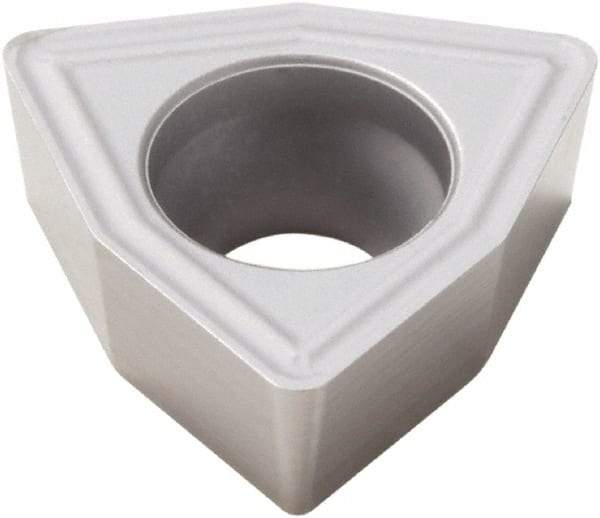

Seco - WCMX050308 86 Grade HX Carbide Indexable Drill Insert - Uncoated, Trigon, 7.94mm Inscribed Circle
Item #: 57024325
Brand: Seco
Model #: 15899
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 050308 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | HX |
| Inscribed Circle (mm) | 7.94 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.80 |
| Shape | Trigon |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | Uncoated |
| Chipbreaker | 86 |
