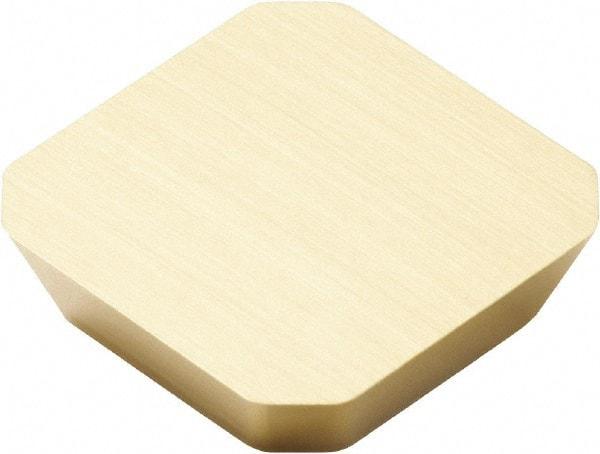

Seco - SEAN42 E12 Grade F15M Carbide Milling Insert - TiAlN/TiN Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 56994122
Brand: Seco
Model #: 30839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEAN |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | F15M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | E12 |
| ISO Number | SEAN 42AFN-E12 |
